Custom Forged Performance. CNC Precision.
We design and manufacture high-performance forged aluminum wheels for luxury cars, racing teams, and private labels. 100% custom made.
Why Choose Forged Over Cast?
Forging is the process of forcing a solid billet of aluminum between the forging dies under an extreme pressure of 12,000 tons. This creates a finished part that is very dense, very strong, and very light.
12,000-Ton Forging
High-pressure forging aligns the grain structure of 6061-T6 aluminum, creating a wheel that is 3x stronger than casting.
30% Lighter
Reduced unsprung weight improves acceleration, braking distance, and handling performance.
Engineering Capabilities
| Specification | Capability Range |
|---|---|
| Diameter | 17" to 24" (Inch) |
| Width (J) | 8.0J to 14.0J (0.5J increments) |
| Offset (ET) | -50mm to +80mm (Customizable per millimeter) |
| Bolt Patterns (PCD) | 5x100, 5x112, 5x114.3, 5x120, 5x130, 6x139.7, Centerlock |
| Load Rating | 690kg to 950kg (Passenger Car) / Up to 1200kg (SUV/Truck) |
Forged Configuration Options
From lightweight monoblocks for the track to complex multi-piece builds for the show.

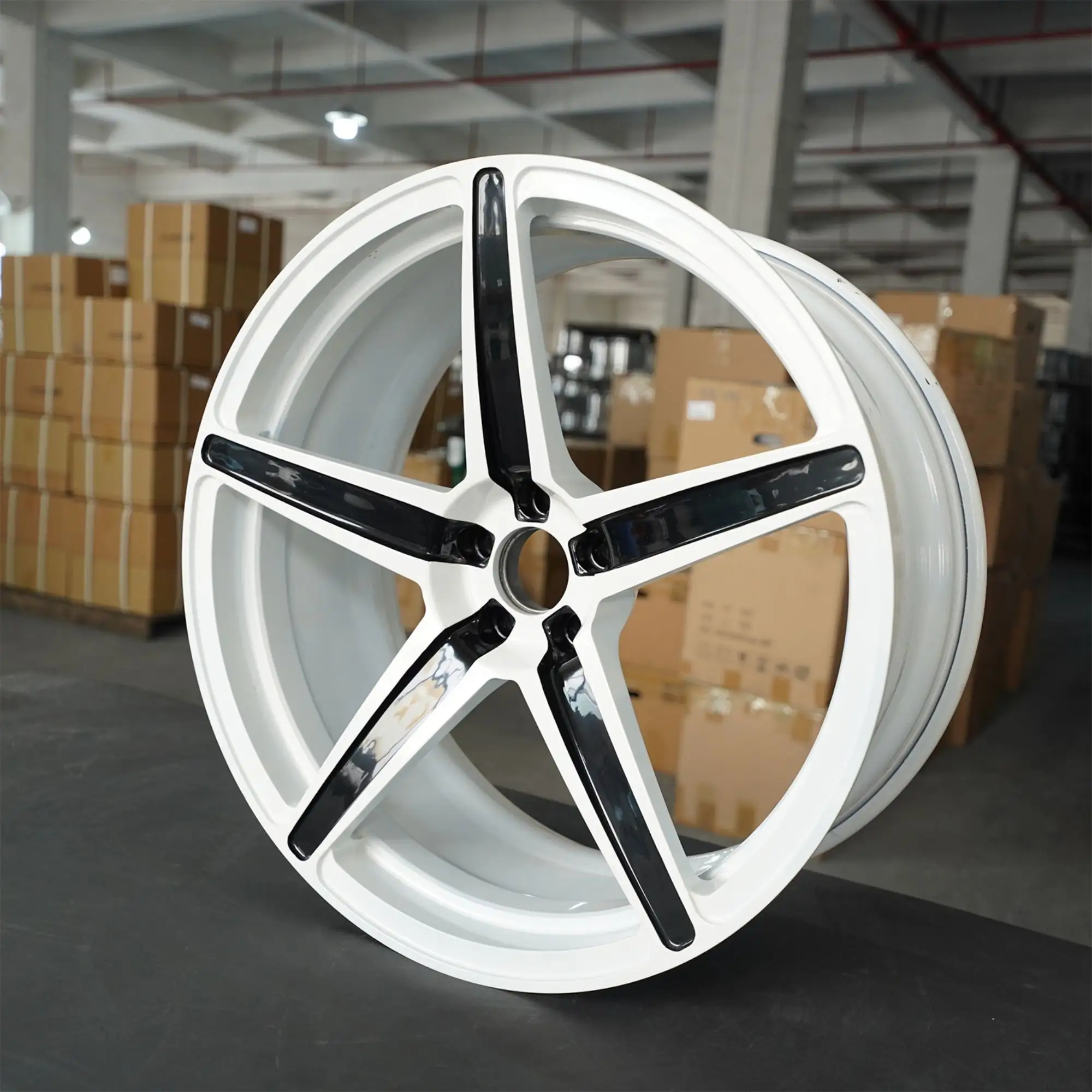

Monoblock Forged
Machined from a single block of 6061-T6. The ultimate balance of light weight and structural rigidity.
- Lightest Option
- Max Size: 24 inch

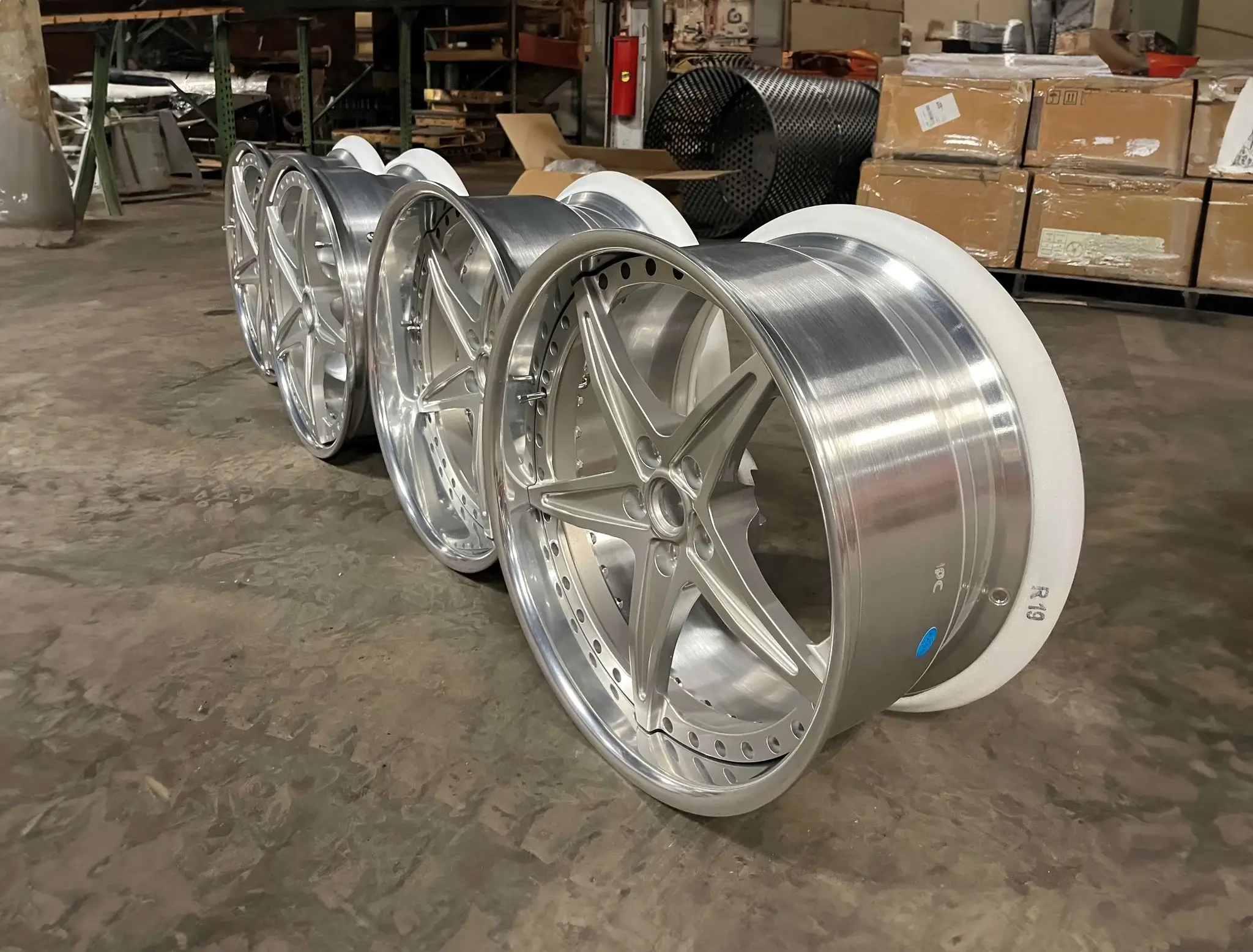

2-Piece Modular
Combines a forged center with a spun-forged barrel. Allows for flexible offset adjustments.
- Custom Offsets
- Exposed/Hidden Bolts

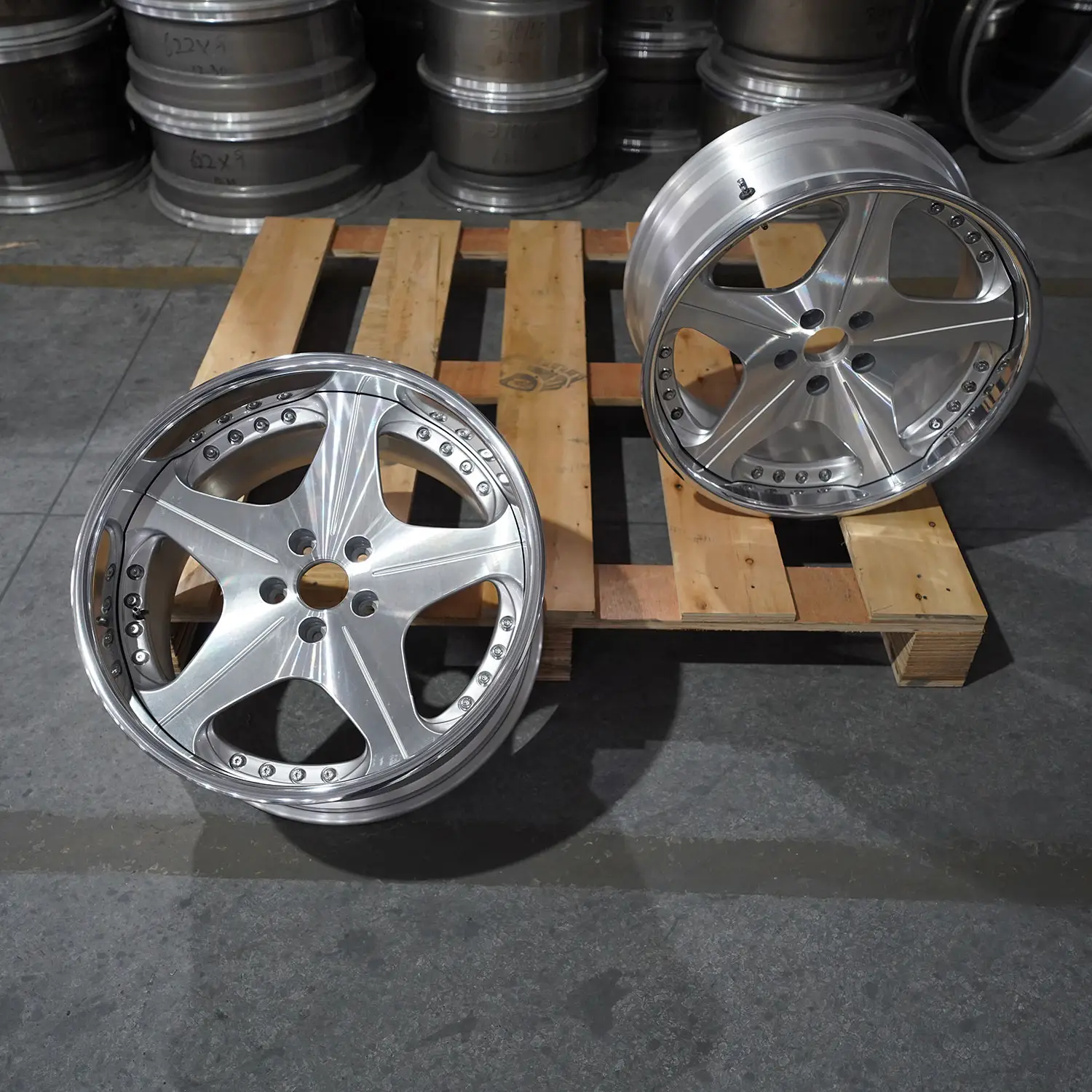

3-Piece Floating
Center, Inner Barrel, and Outer Lip. The pinnacle of customization. Deep dish options.
- Max Customization
- Deep Lip / Concave
Surface Finishing Options
Hand Brushed
Clear / Tinted / Bronze

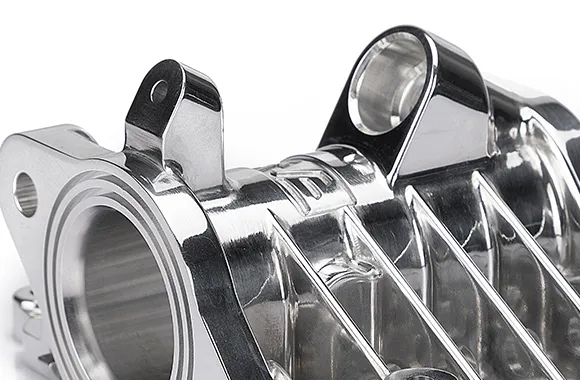

Mirror Polished
High Gloss Reflection
Powder Coat
Matte / Satin / Gloss Black

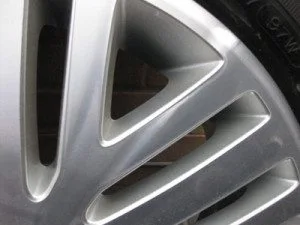

Diamond Cut
Two-Tone Machine Face
From Concept to Road
1. Design & FEA
3D modeling and Finite Element Analysis (FEA) to ensure load rating compliance (JWL/VIA).
2. CNC Milling
Intricate 5-axis milling to carve out the spoke design from the forged billet.
3. Testing & QC
Runout check, dynamic balancing, and impact testing before packaging.
Wheel Manufacturing FAQ
Launch Your Wheel Brand Today
We offer private label manufacturing services. Your design, your branding, our manufacturing expertise.
